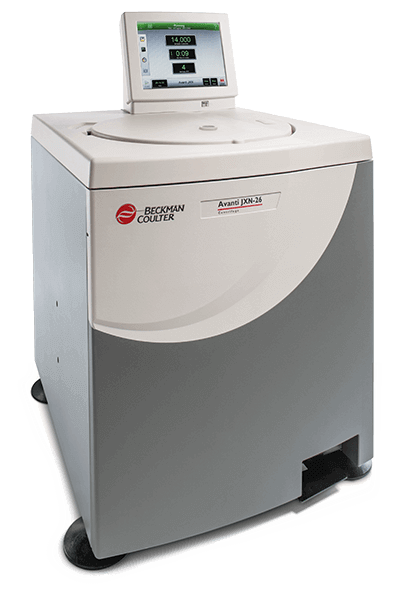

Avanti(R) JXN-26 Three-Phase Centrifuge, 220V, 50HZ, 12A
Product No:B34182
Enhance your workflow. Experience simplified high-throughput sample processing and more control with the JXN-26 three-phase centrifuge with powerful high speed features, low heat output, imbalance tolerance and quiet performance. Three-phase filtration divides materials into solids, liquids and gases. Has a maximum capacity of 6.0L and RPM of 26,000 (82,000 x g). The Friction Reduction System (FRS) means the machine runs quicker, quieter and cooler, with shorter cycle times with high-torque because of the exclusive Switched Reluctance (SR) drive. Stores up-to 1000 user-defined programs.
Resources + Tools
Product Specifications
| Platform | Avanti |
| Maximum Speed | 26,000 RPM |
| Maximum g-Force | 81,770 xg |
| BioSafe | Yes |
| Acceleration | 11 acceleration profiles |
| Deceleration | 12 profiles |
| Timed Run | Up to 99 hrs, 59 mins |
| Max Capacity Volume Range | 1 - 6 L |
| Refrigeration System | Non-CFC, non-ozone depleting refrigerant |
| Temperature Control | ± 2|°C of set temperature after equilibration |
| Drive Type Cooling | Air-cooled |
| Temperature Range(s) | From -10°C to +40°C in 1° increments |
| Rotor ID | Automatic |
| Zonal Capability | True |
| Pollution Degree | 2 |
| Environmental Conditions | -10°C to 40°C in 1° increments |
| Installation Category | II |
| Material(s) | Steel, Plastic |
| Finish | Powder Coat Paint |
| Weight | 290 kg |
| Width | 71 cm |
| Depth | 86 cm |
| Height | 86 cm (149 cm with door open) |
| Clearances | 7.6 cm (sides) & 16 cm (rear) |
| Humidity Restrictions | 80% (non-condensing) |
| Power Requirements | 220 V, 50 Hz |
